生產一流的產品是長虹永恒的主題；一切為用戶著想、讓用戶滿意，是長虹機械最忠誠的承諾！

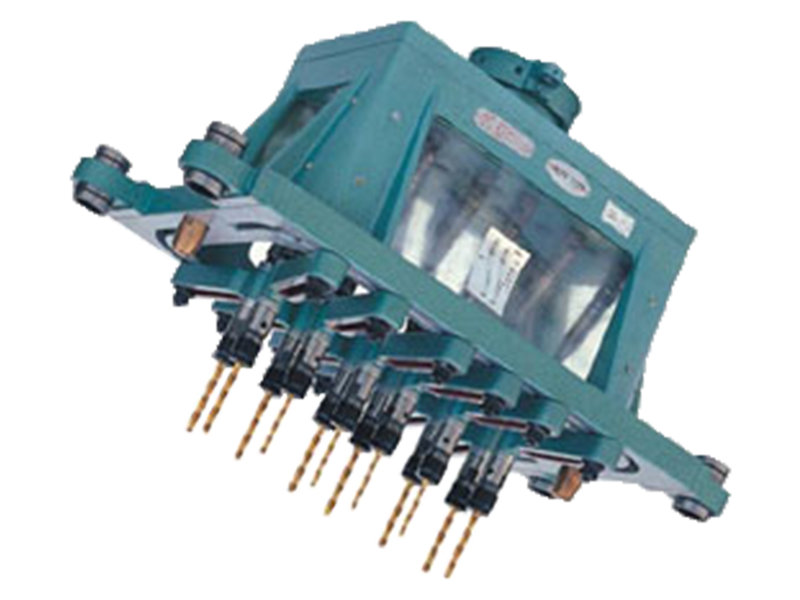

方型可調式多軸器結構與圓型相同。工作孔距如屬直絏或長方型萬向多軸器，以免移位量太大損害萬向節接頭壽命。使用方法與圓型相同。(盡量配合工作之孔距坐標，設計齒輪箱結構即定鏜孔位)
※萬向節注意事項：
1、調整時不能超過規定的角度15度
2、如超過此極限心軸易磨損或斷裂
3、工作時應經常加潤滑油脂
型號 | SU100x165 | SU120x200 | SU120x300 | SU160x450 | SU220x360 | SU250x500 | SU170X200 | SU300X400 | SU400X550 | SU450X550 | SU150X800 | SU300X1000 |
筒夾規格/ 最大鑽孔能力 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 | ER8/5 ER11/7 ER16/10 ER20/13 C5/5 C6/6 C9/9 C12/12 |
| 轉速比 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 | 1:1 1:2 |
最小距離(二軸間) | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 | 13 18 26 28 |
最大軸心範圍 | 100x165 | 120x200 | 120x300 | 160x450 | 220x360 | 250x500 | 170X200 | 300X400 | 400X550 | 450X550 | 150X800 | 300X1000 |
軸數 | 2-8 | 2-12 | 4-16 | 4-16 | 6-14 | 4-18 | 2-12 | 4-16 | 4-18 | 4-18 | 4-18 | 4-18 |
